Stanley Aoife TOP BAFFLE AF0518-CR

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: AF0518-CR

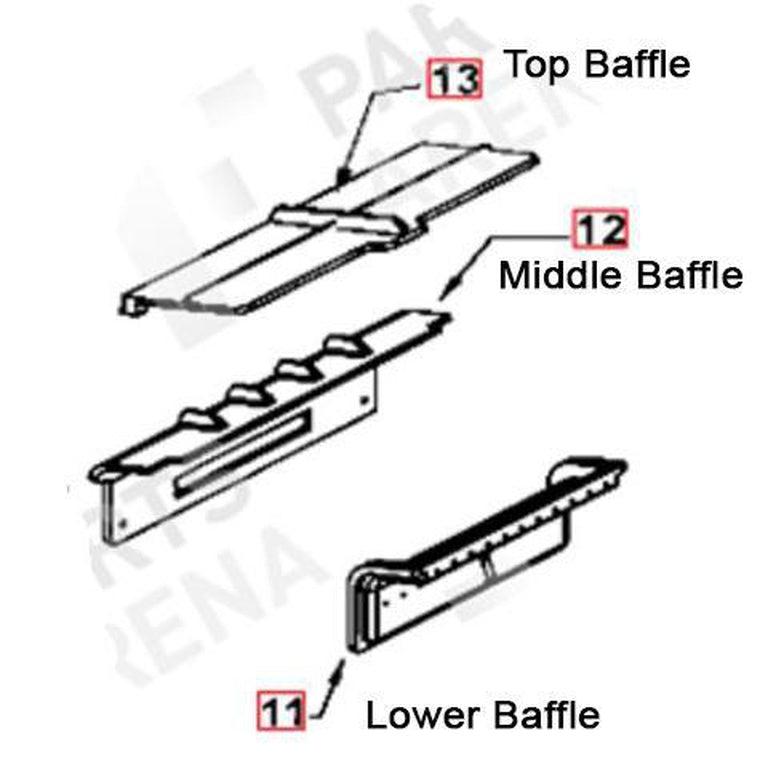

Description: TOP BAFFLE

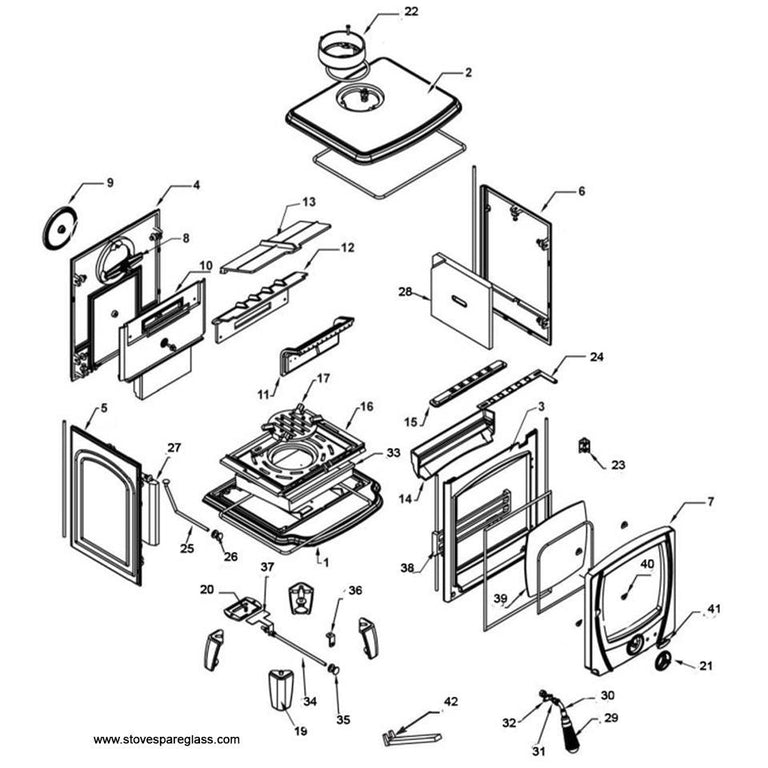

Number on Exploded Drawing: 13

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

Notes:

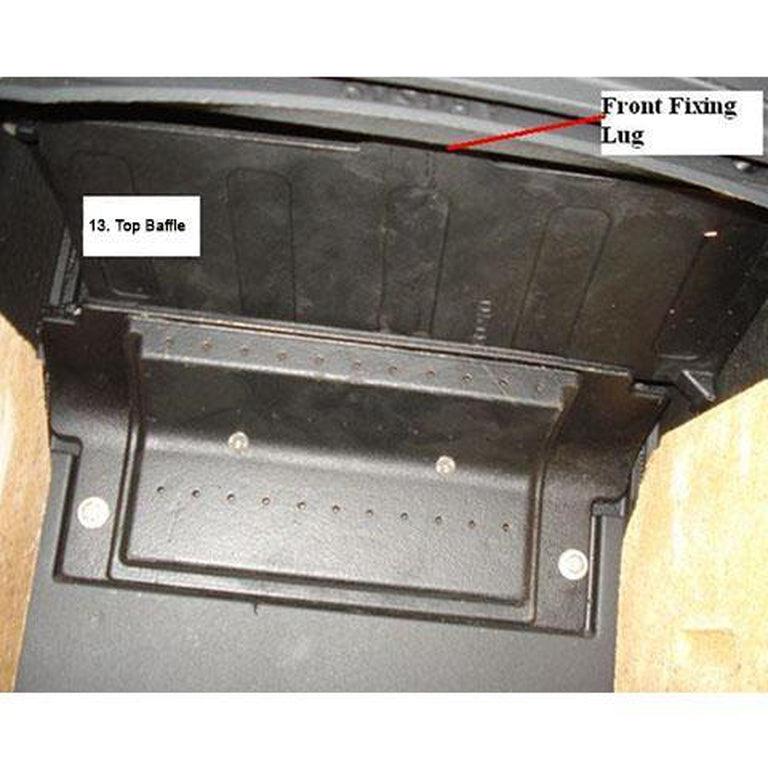

To access the flue pathways through the stove, remove the top baffle (13) by lifting it at the front edge, pushing it backwards to allow the front tab of the baffle to clear the fixing lug located on the back of the front casting and then letting it drop into the firebox so that it can be removed through the door opening.
