Stanley Aoife GRATE AF0515-CR

Genuine Waterford Stanley Spare Part

Waterford Stanley Stove: Stanley Aoife

Part Number: AF0515-CR

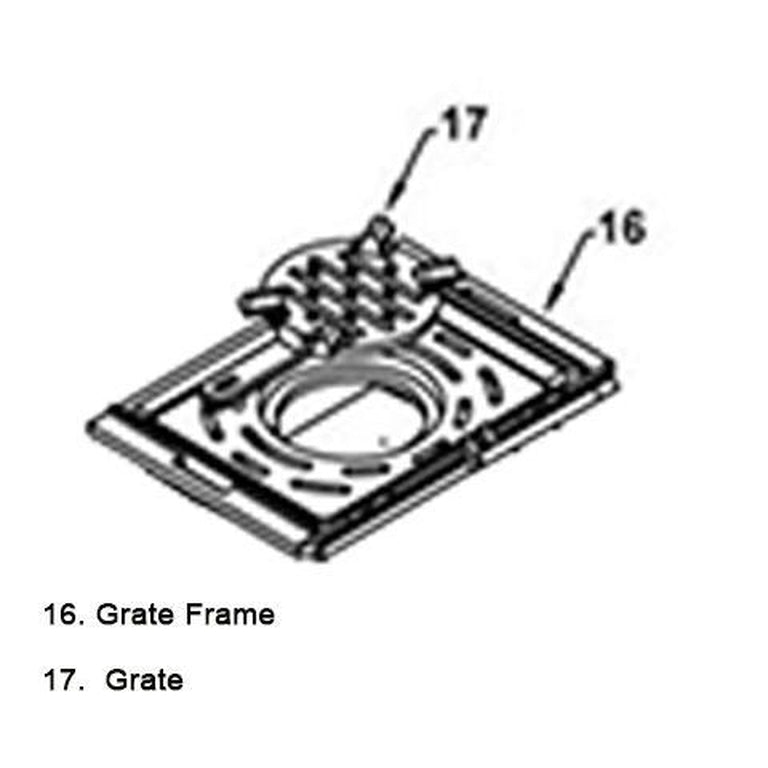

Description: GRATE

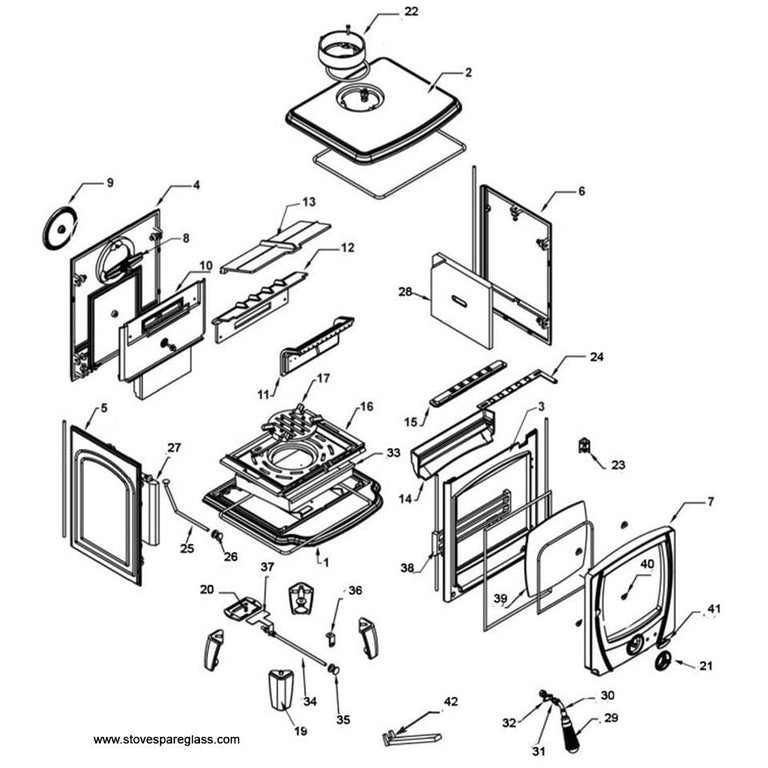

Number on Exploded Drawing: 17

Delivery to your door throughout all of UK and Ireland

Click here to view pop out drawing

Click here for pdf part numbers and drawing

Notes:

Remove the riddling knob (26) from the riddling rod (25) by loosening the grub screw (M3 x 8mm) on the underside of the knob using the small allen key supplied with the stove (see Figure 4.4). Remove side bricks (27 & 28) by lifting them upwards and towards the front of the stove allowing them to clear the position rib on the grate frame (16). Lift the grate fame (16) up at the back edge from underneath the frame until the riddling rod (25) has been retracted fully through the hole on the front casting (3) thus allowing the grate (17), with the riddling rod attached, to be lifted out of the grate frame. Remove the grate frame by lifting it up completely at the back and rotating until it clears the door opening.
