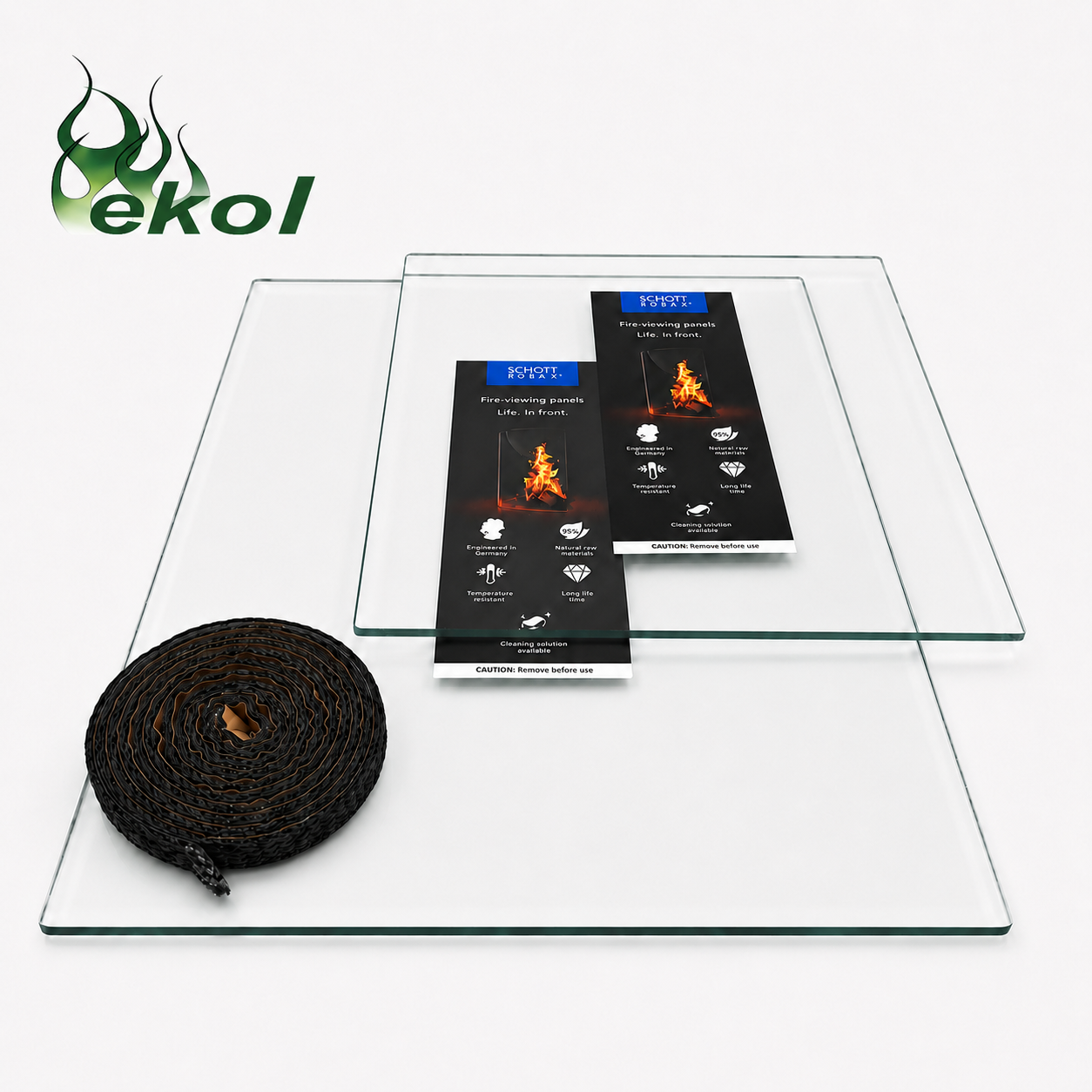

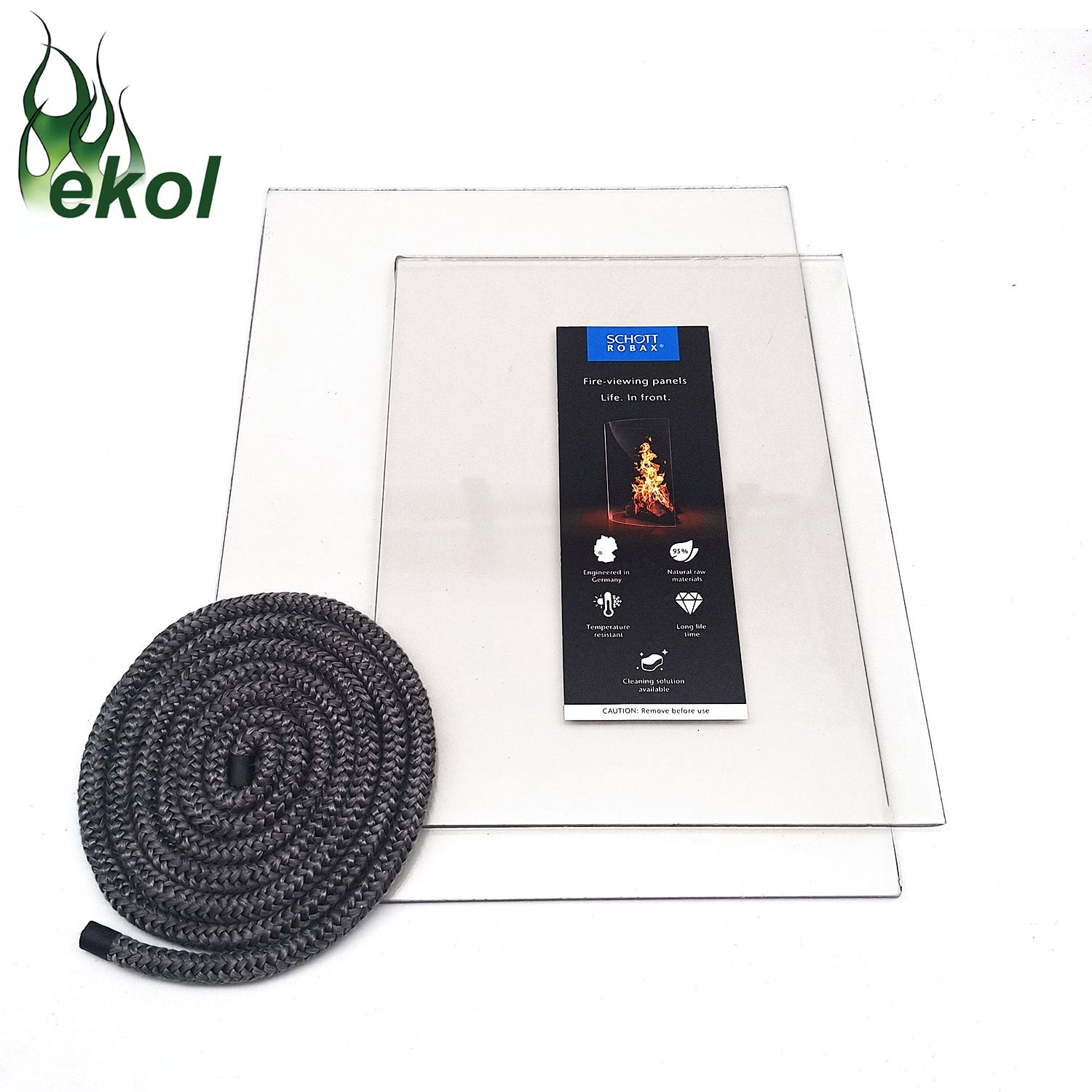

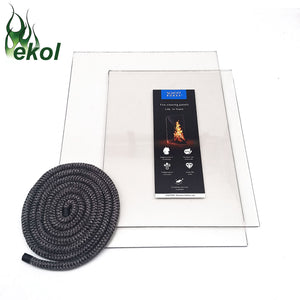

Ekol Stove Glass Replacement – All Models & Sizes – with Glass Seal (No Glue)

Please check your stove model and glass dimensions before ordering

Select the correct Ekol stove model and glass size from the dropdown menu. Each option includes an 8mm soft round glass rope seal suitable for trimming to fit the selected panel.

Every panel is precision cut from genuine SCHOTT ROBAX heat-resistant glass-ceramic designed for high-temperature stove and fireplace applications. The glass is unbranded, features no logo.

Available sizes:

Clarity 5 – 240 × 234mm
Clarity 5 MK1 – 242 × 233mm
Clarity 5 MK2 – 247 × 236mm
Clarity 8 – 273 × 271mm
Clarity 12 Double Sided – 424 × 267mm
Crystal 5 – 238 × 225mm
Crystal 8 – 295 × 265mm
Crystal 12 / 12 Crystal – 447 × 301mm
Inset 5 – 330 × 290mm
Inset 8 – 329 × 292mm

Glass Seal Included

An 8mm soft round glass rope seal is supplied with every panel. No glue is supplied or normally required, as the pressure of the fitted glass should hold the seal securely in place.

Trim the seal neatly with scissors and join the two ends with a butt joint without overlapping them. End sealing tape can be applied to help prevent fraying.

Why Buy From Stove Spare Glass?

• Genuine SCHOTT ROBAX heat-resistant glass-ceramic
• Near-zero thermal expansion
• Unbranded glass with no logos
• 8mm soft round glass rope seal included
• Precision cut and edge finished
• Carefully packaged for transit

Before Ordering

Please compare the stated dimensions with your existing stove glass before ordering. Clarity 5, Clarity 5 MK1 and Clarity 5 MK2 use different glass sizes, so select the exact version required.

Fitting Advice

Remove the old glass and seal, clean the supporting surfaces and fit the supplied rope seal around the replacement panel.

Refit the retaining clips evenly. The clips should only be tightened hand tight and must not be overtightened, as excessive pressure can damage the glass.
